Step

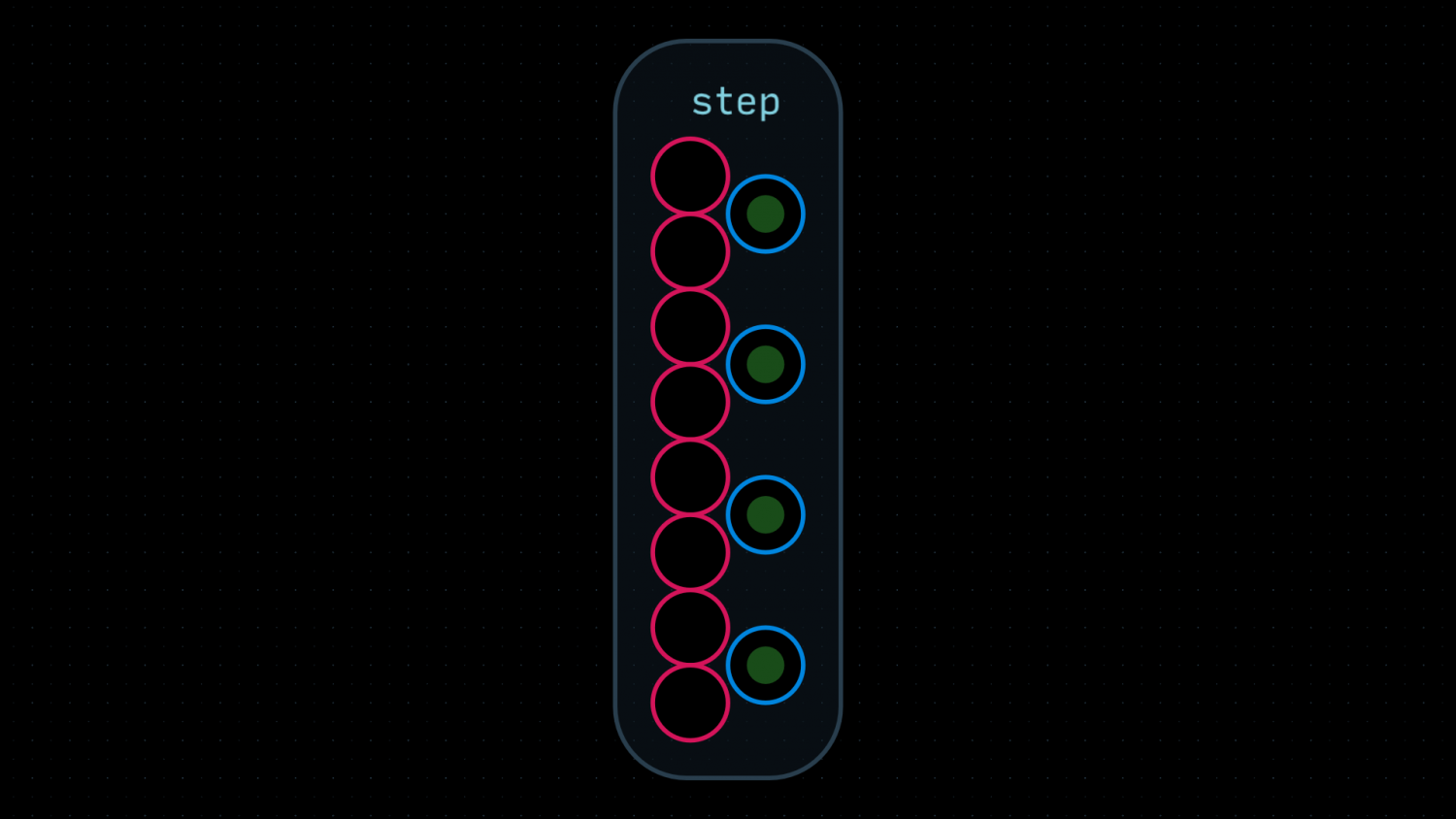

This module is a convenient repackaging of 4 step operations.  It accepts all signals and outputs a Digital Signal (DGS).  The x input is the upper input, the y is the lower.

1 if x > edge, otherwise 0. Hard step.
